Compact dimensions: With a length of just 2.70 m and a width of 0.99 m, perfectly suited for confined working areas – both indoors and outdoors.
High performance: Offers up to 10.0 m working height and 200 kg lifting capacity, ideal for a wide range of maintenance, installation, and assembly tasks.
Driveable at full height: Relocation on site is possible without lowering the platform – saving time and increasing efficiency.
Maximum flexibility: 3.00 m horizontal outreach and 360° rotation provide effortless access and precise positioning in any direction.

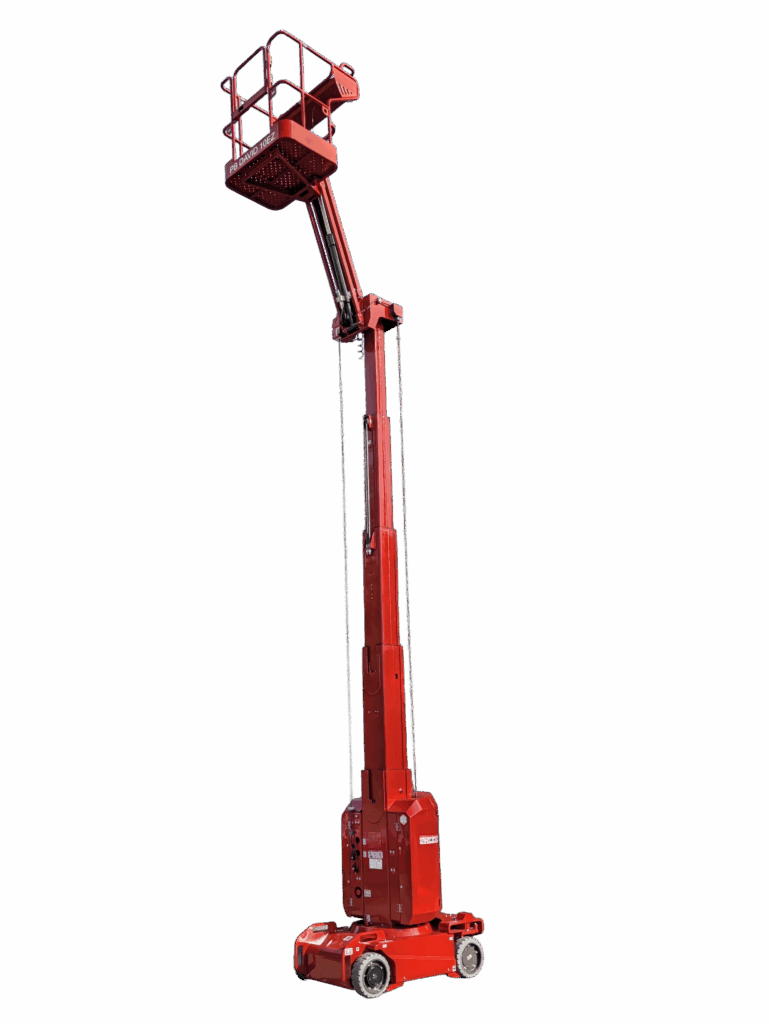

The PB DAVID 10EZ stands out as a compact and agile vertical mast lift offering impressive performance – perfect for demanding indoor and outdoor applications. Its slim design combines maneuverability with a remarkable working height of 10.00 m, making it ideal for locations where space is limited but precision is essential.
With an overall length of just 2.70 m, a width of 1.00 m, and a stowed height of 1.99 m, the machine easily navigates narrow passages. Featuring a 3.00 m horizontal outreach and 360° rotation, the PB DAVID 10EZ ensures maximum flexibility in every working situation.
The robust platform (0.99 m × 0.76 m) supports up to 200 kg lift capacity and accommodates two people indoors or one person outdoors. The efficient, maintenance-free AC electric drive, in combination with proportional controls, 25% gradeability, and a differential lock, guarantees smooth operation, precise positioning, and maximum safety – in short, perfect working conditions on any job site.
| Technische Daten | |
|---|---|
 Working height | 10,00 m |
 Platform height | 8,00 m |
 Lift capacity | 200 kg |
 Total length | 2,70 m |
 Total width | 1,00 m |
 Total height | 1,99 m |
| - | |
| - | |
 Transport height | 1,99 m |
 Total weight | 2.670 kg |
 Gradeability | - |
| Technische Daten 2 | |
|---|---|
| - | |
 Speed - stowed | 4,50 km/h |
 Speed - raised | 0,50 km/h |
 Turning radius outside | 1,61 m |
 Drive type | - |
 Battery capacity | - |
 Area of application | indoor + outdoor |
 People indoor | - |
 People outdoor | - |
| Drivable at full height | Yes |
Technical data are subject to change.
